Teleflex MAD Nasal Intranasal Mucosal Atomization Device

The Teleflex MAD Nasal Intranasal Mucosal Atomization Device MAD110 / MAD300 is a breakthrough alternative to intravenous drug delivery when IV access is difficult, time-consuming, or contraindicated. Used by emergency medical services (EMS), hospitals, and military settings worldwide, this device transforms standard Luer lock syringes into a fine atomized spray that coats nasal mucosa for rapid systemic absorption. No needle sticks. No pain. No special training for sterile technique. Whether you choose the original MAD110 with its standard tip or the MAD300 with an extended length for anatomically challenging patients, you gain a reliable rescue tool for seizures, opioid overdose, pain management, and more.

Key Features & Benefits

• Needle-Free & Painless: Eliminates patient anxiety and the risk of accidental needle stick injuries to providers. No sharp disposal required.
• Rapid Absorption: Atomized particles create a large surface area on nasal mucosa, allowing medications to enter the bloodstream quickly while bypassing first-pass hepatic metabolism.
• Minimal Resource Utilization: No IV setup, no sterile technique, no specialized equipment. Deploy in seconds with any standard Luer lock syringe.
• Controlled Atomization Regardless of Position: Delivers a consistent, fine mist even if the patient is supine, seated, or in any position—critical for emergency scenes.
• ALS and BLS Appropriate: Simple enough for basic life support providers yet powerful enough for advanced life support protocols. Expands your treatment options.
• Two Configurations: MAD110 features a standard 2.5cm tip for most patients. MAD300 offers a longer 5cm flexible tip for patients with nasal anatomy challenges, septal deviations, or swollen turbinates.

Technical Specifications

• Manufacturer: Teleflex (MAD Nasal™ brand)
• Models: MAD110 (standard tip, 1 inch / 2.5cm insertion depth); MAD300 (extended tip, 2 inches / 5cm insertion depth)
• Connector: Standard female Luer lock – compatible with most luer tip syringes (1mL to 10mL typical)
• Atomization Particle Size: 30–100 microns (optimized for mucosal absorption)
• Spray Pattern: 360-degree circumferential plume
• Material: Medical-grade plastic, latex-free, DEHP-free
• Sterility: Sterile, single-patient use
• Compatible Medications: Use only with drugs approved for intranasal administration (e.g., naloxone, midazolam, fentanyl, ketamine, glucagon). Follow local protocols.

What’s Included

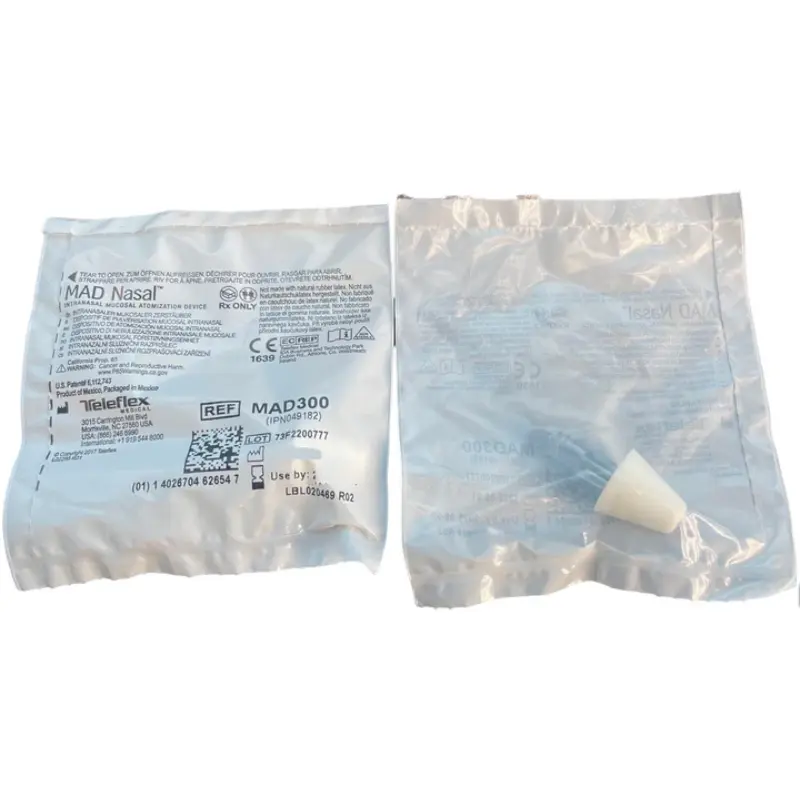

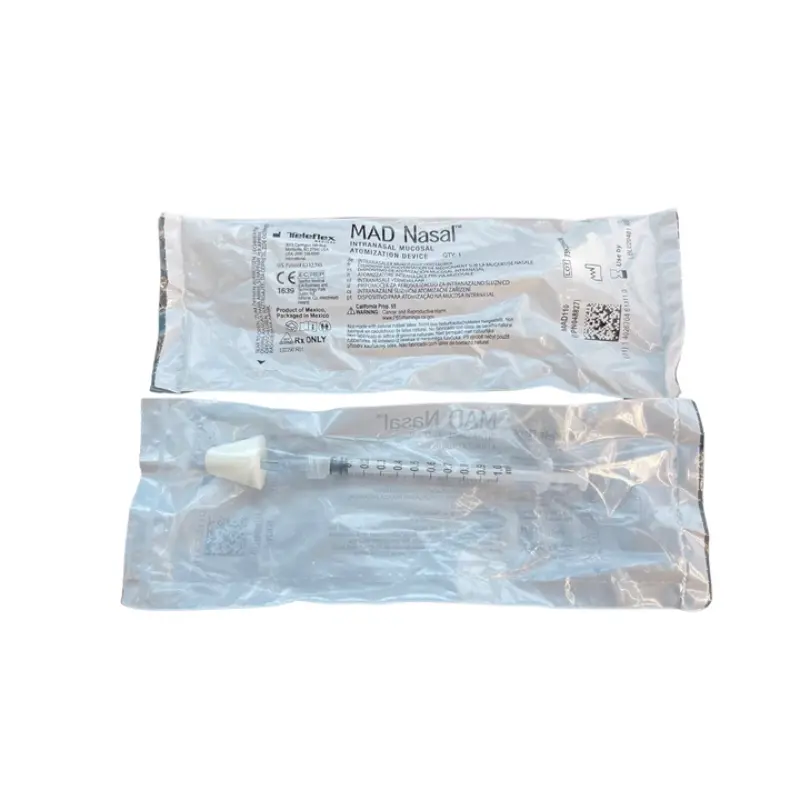

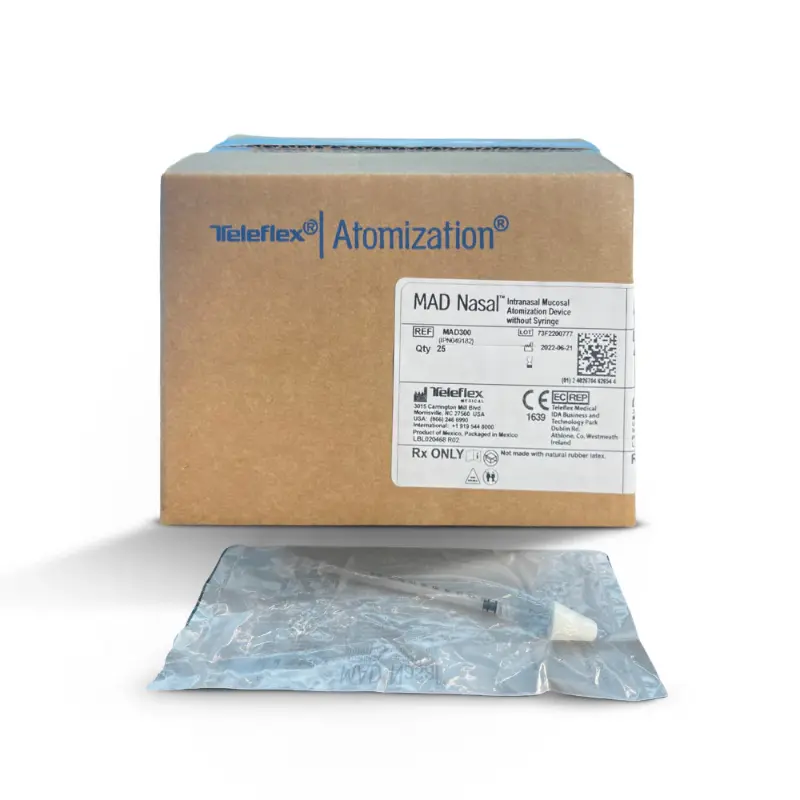

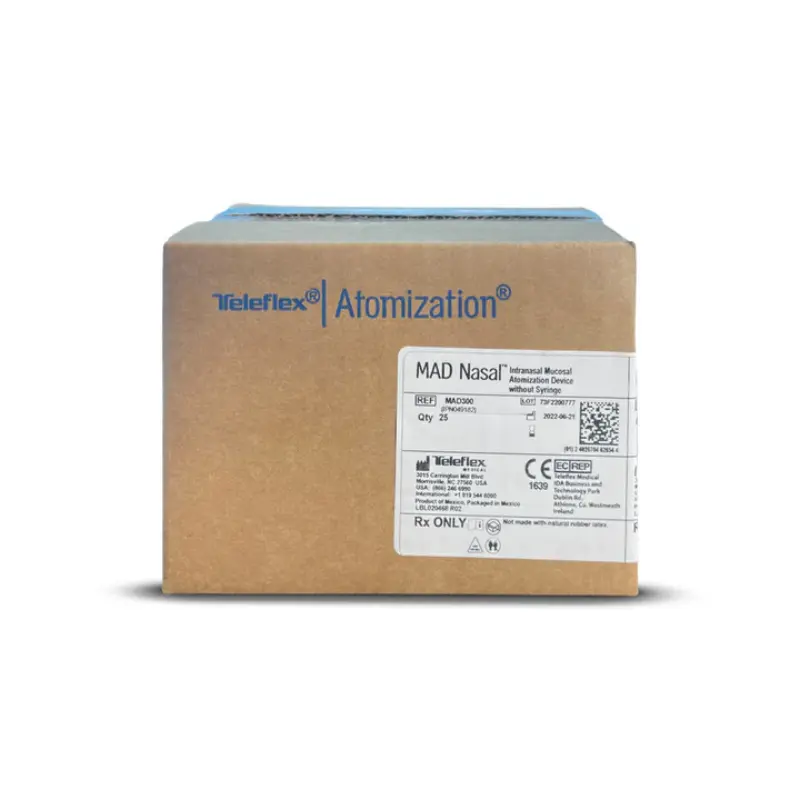

Each Teleflex MAD Nasal Intranasal Mucosal Atomization Device MAD110 / MAD300 is supplied individually sterile-packaged, ready for immediate use. The device includes the atomization nozzle, Luer lock connector, and protective cap. Syringe and medication are sold separately. Choose MAD110 for standard adult/pediatric applications or MAD300 for patients requiring deeper nasal deposition.

Why Choose Teleflex MAD Nasal Device

Teleflex is a globally trusted name in medical devices, and the Teleflex MAD Nasal Intranasal Mucosal Atomization Device MAD110 / MAD300 is the original, most extensively studied intranasal atomizer on the market. Backed by decades of emergency medicine experience, MAD devices have been used in countless prehospital and in-hospital resuscitations. When IV access fails or delays treatment, the MAD Nasal device provides a painless, needle-free, and highly effective route. Upgrade your emergency drug delivery capabilities with the device that sets the standard for mucosal atomization.
